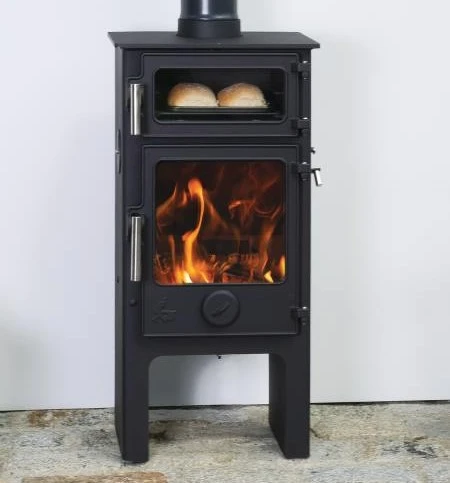

DF Baker W5 Plus Eco WB/MF

The Dartmoor Baker Plus W5 Eco has oven vents that allow the cooking smells and condensation to be drawn out of the oven and up the chimney. If you would like to use the top of the stove to warm a pan or boil a kettle then the use of the back flue outlet is recommended when installing the stove. Using the rear flue outlet will create a clear area, providing extra space and access to the hotter part of the top plate (near the back), a special Dartmoor Baker back adaptor with flue cleaning access can be purchased to achieve this.

All the Dartmoor Bakers Plus W5 Eco’s have a removable cleaning plate located inside the oven. This door provides a cleaning access to the top of the oven or for sweeping the chimney when fitted with a top exit flue. Check your chimney sweep is happy to sweep through this access door before installation.

Technical Data

• Nominal Output: 5Kw
• Efficiency: 83.1%
• Flue Size: 125mm (5″)
• Standard Leg Length: 255mm (4.13″)
• Flue Centre Top: 133mm
• Flue Centre Rear: 835mm
• Efficiency Class: A+

Dimensions

• W: 565mm
• H: 1000mm
• D: 320mm
• D: 330mm With Double Rear Heat Shield
• D: 375mm (with handle)
