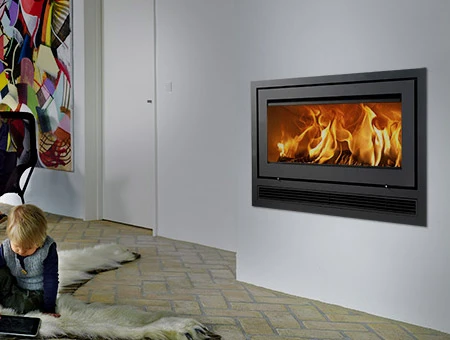

Lotus H470 Air With Fan/ventilator

Spread the Warmth and Cosiness to Several Rooms

Lotus fireplace inserts with an in-built ventilator – i.e. the Air model – effectively create the option of distributing the heat between several rooms. Cold air is sucked in through the vent beneath the door and the warmed air is released from the vent above the door or fed via tubes to other rooms in the house. The ventilator can be regulated steplessly and can shift up to 300 m3 air per hour. This provides optimum warmth throughout the home.

The following models are available with the ventilator: H470, H570, H470 W og H570 W and supplied with a steel frontage in black or grey. All Lotus fireplace inserts are delivered with the opening handle on the right hand side and the hinges mounted on the left hand side as standard. However, Lotus can also supply inserts with a reflective opening at no extra charge if this is specified at the time of ordering.

Technical Data

• Fuel: Wood
• Power: 3 – 9 kW
• Energy class: A+
• Efficiency: 84%
• Material: Steel
• Built-in height: 65.4 cm
• Built-in width: 73.6 cm
• Built-in depth: 44 cm
• Fire view: Single-sided
• Flue gas discharge: ∅ 150 mm
• Top connection: Yes

Dimensions

• Height: 65.4 cm
• Width: 73.6 cm
• Depth: 44 cm
