Lotus QM40 Soapstone With Baking Section

New Possibilites with Matching Cast Iron Door

The new popular heat storage oven now comes in a roomy baking section version. The baking section is equipped with a powerful grill that can be placed on several different levels, all depending on what you want to make.

The QM40 with baking section is built to be just as robust as the traditional QM40. The oven maintains its sleek and stylish design, since the baking section comes with cast iron doors, just like the oven’s wood chamber, running in a straight line from wood chamber to baking section.

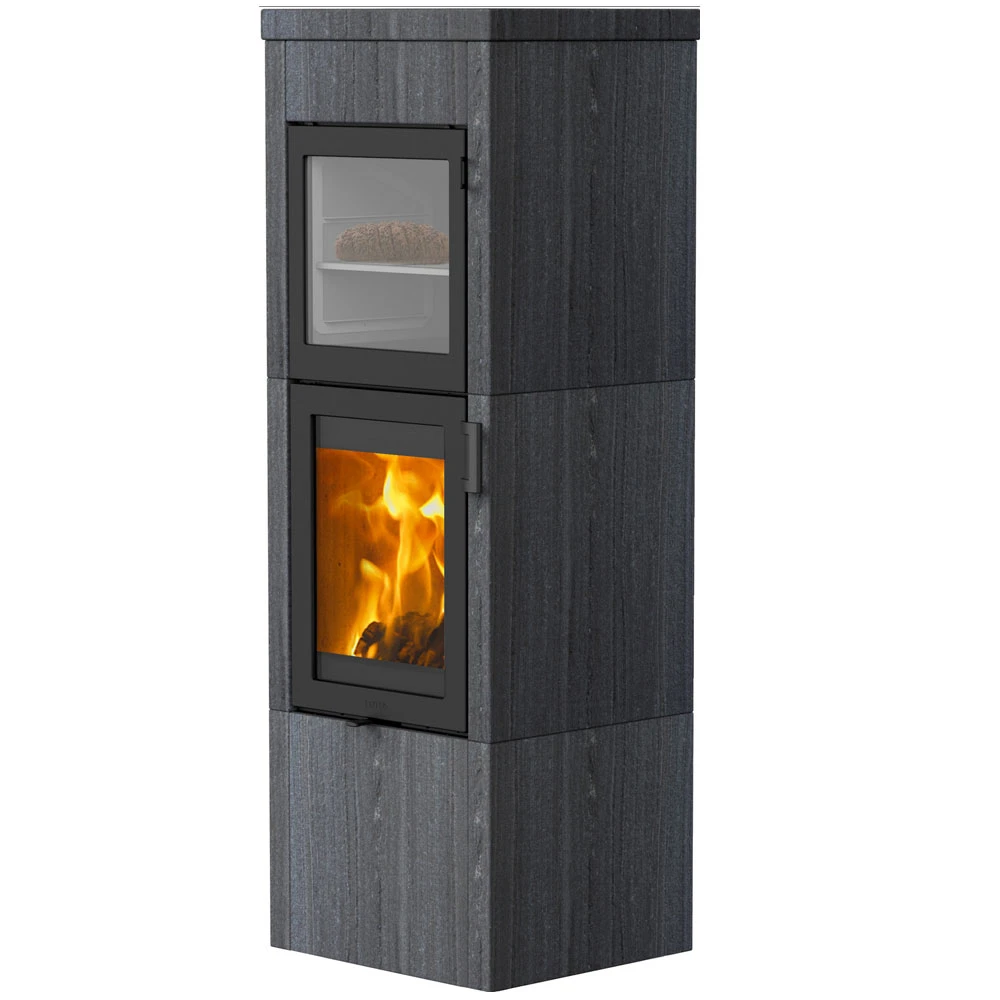

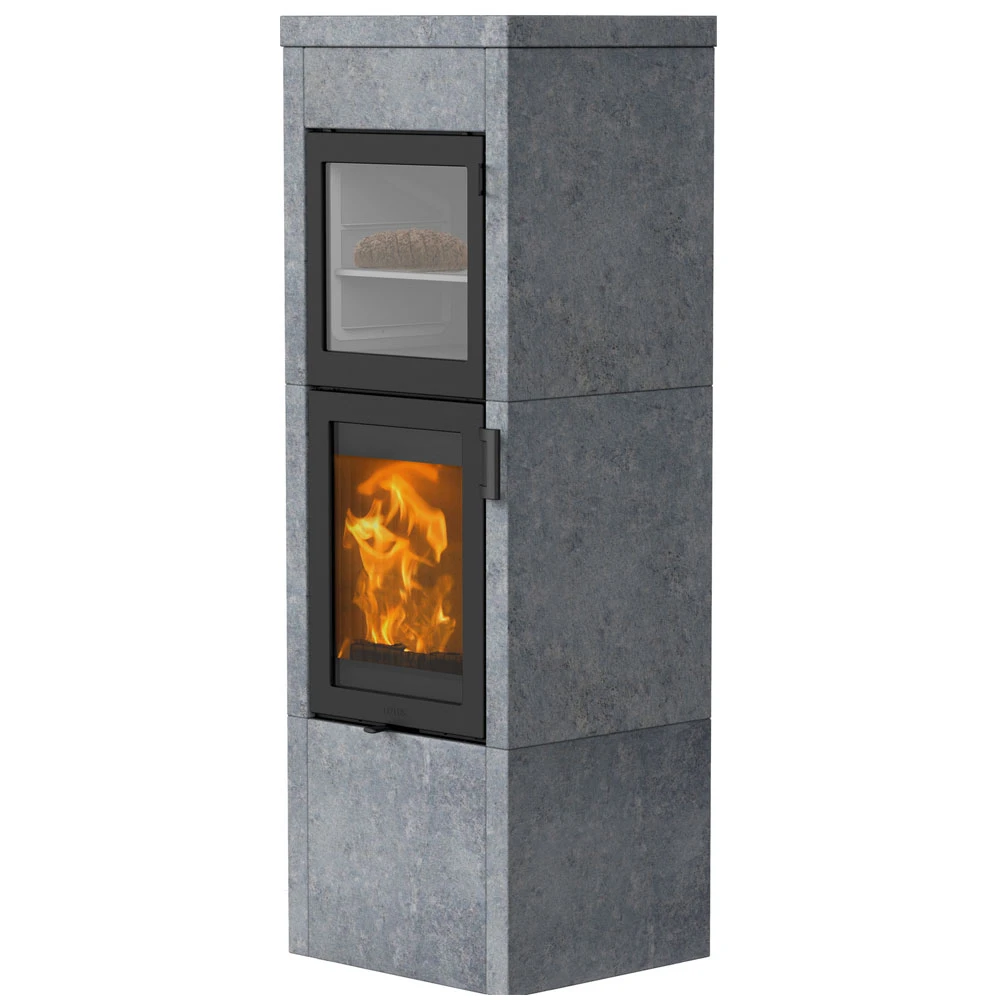

The QM40 with baking section is available in both classic Soapstone and elegant Indian Night stone. Both stone options have unique heat storage properties, meaning they will give off heat over a long period of time.

Technical Data

• Energy efficiency class: A+
• Rated heat output: 6 kW
• Heating output min./max.: 3-9 kW
• Efficiency: 80%
• Space heating capacity up to: 126 m³
• Ø external air supply: 80 mm
• ext. Air connection: rear
• External combustion air connection: Yes
• Ø smoke pipe: 150 mm
• Weight: 500kg
  Log length max.: 33 cm
• Fuel: logs

Dimensions

• Width: 52cm
• Height: 156cm
• Depth: 48cm
